Vertical Ultra
Details

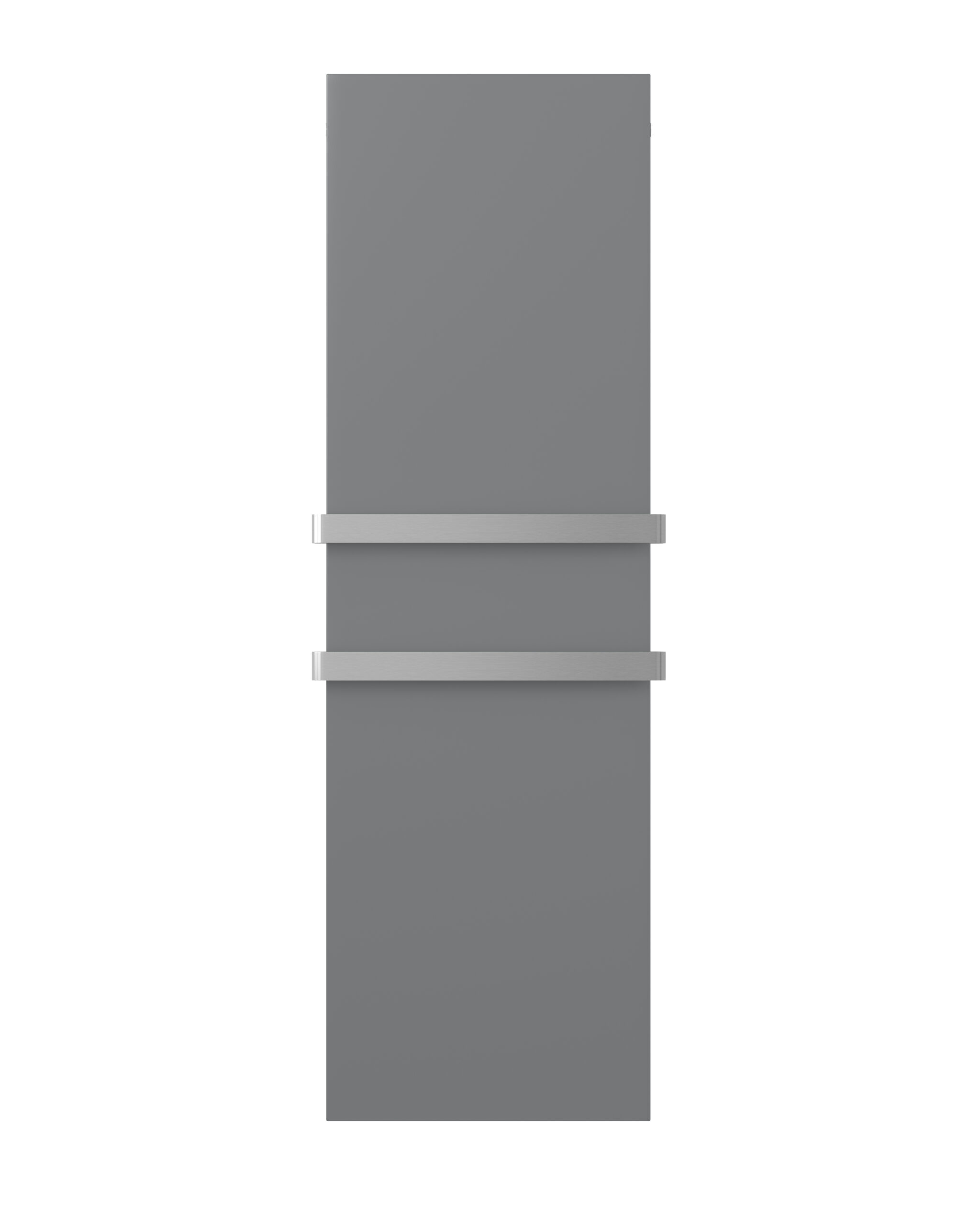

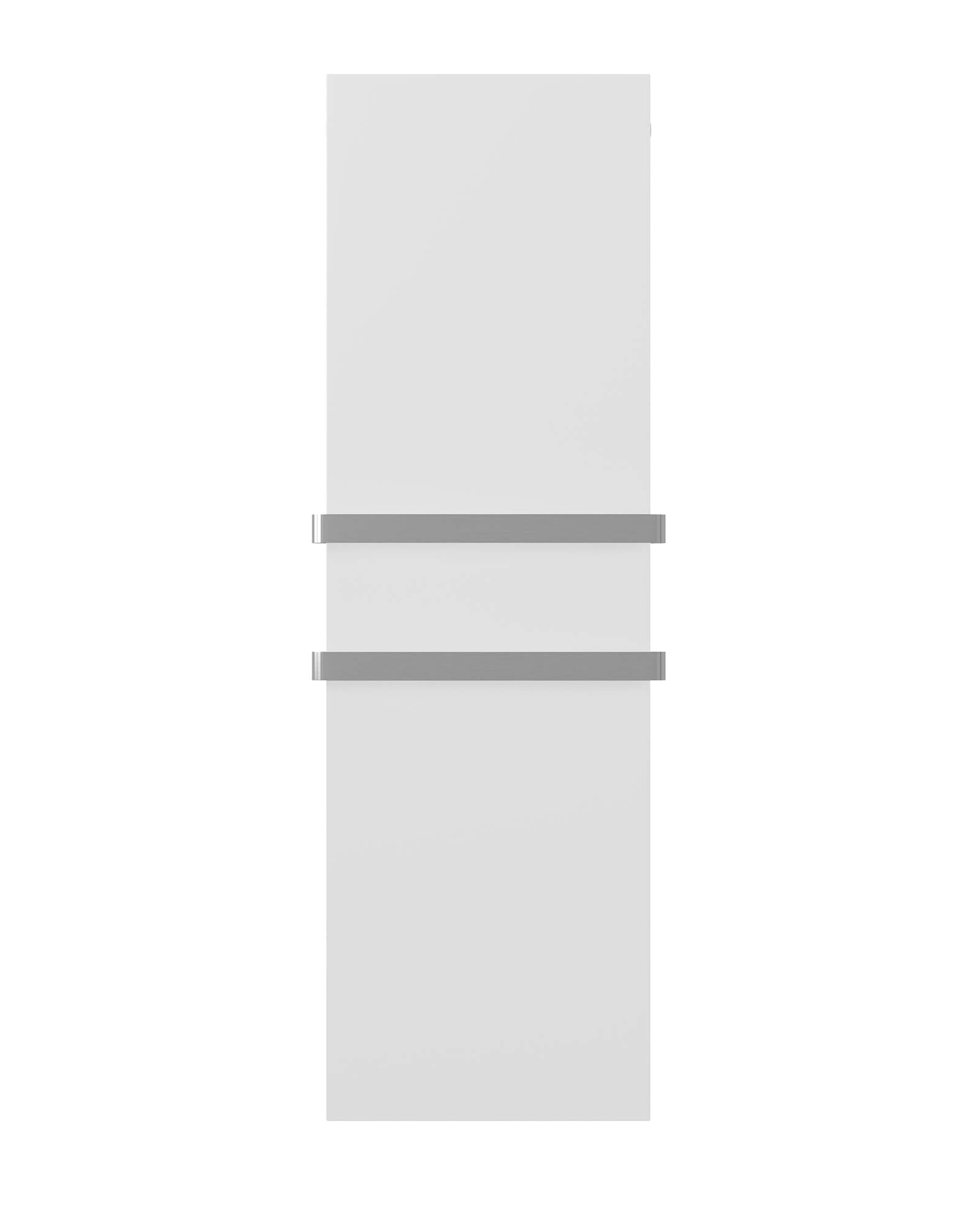

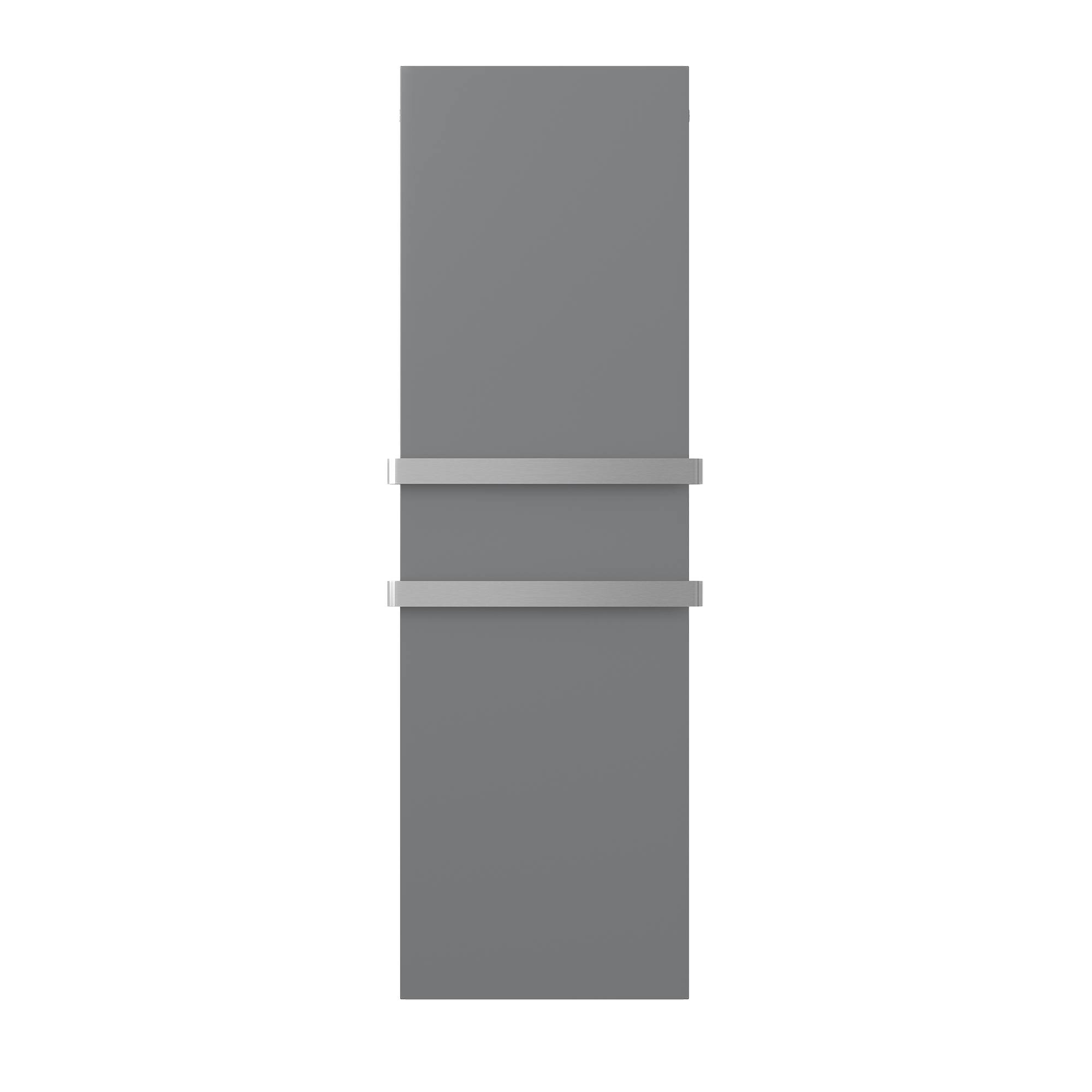

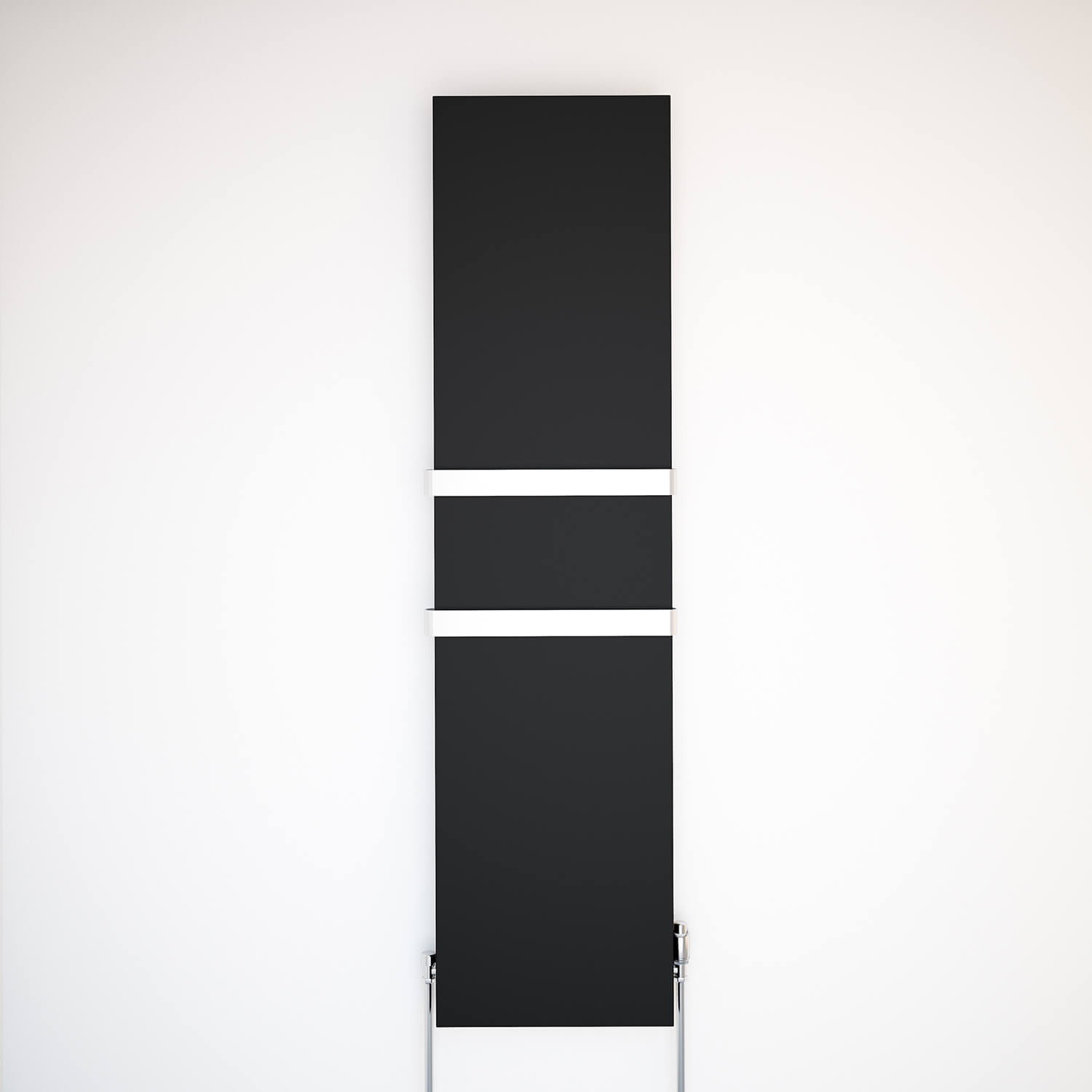

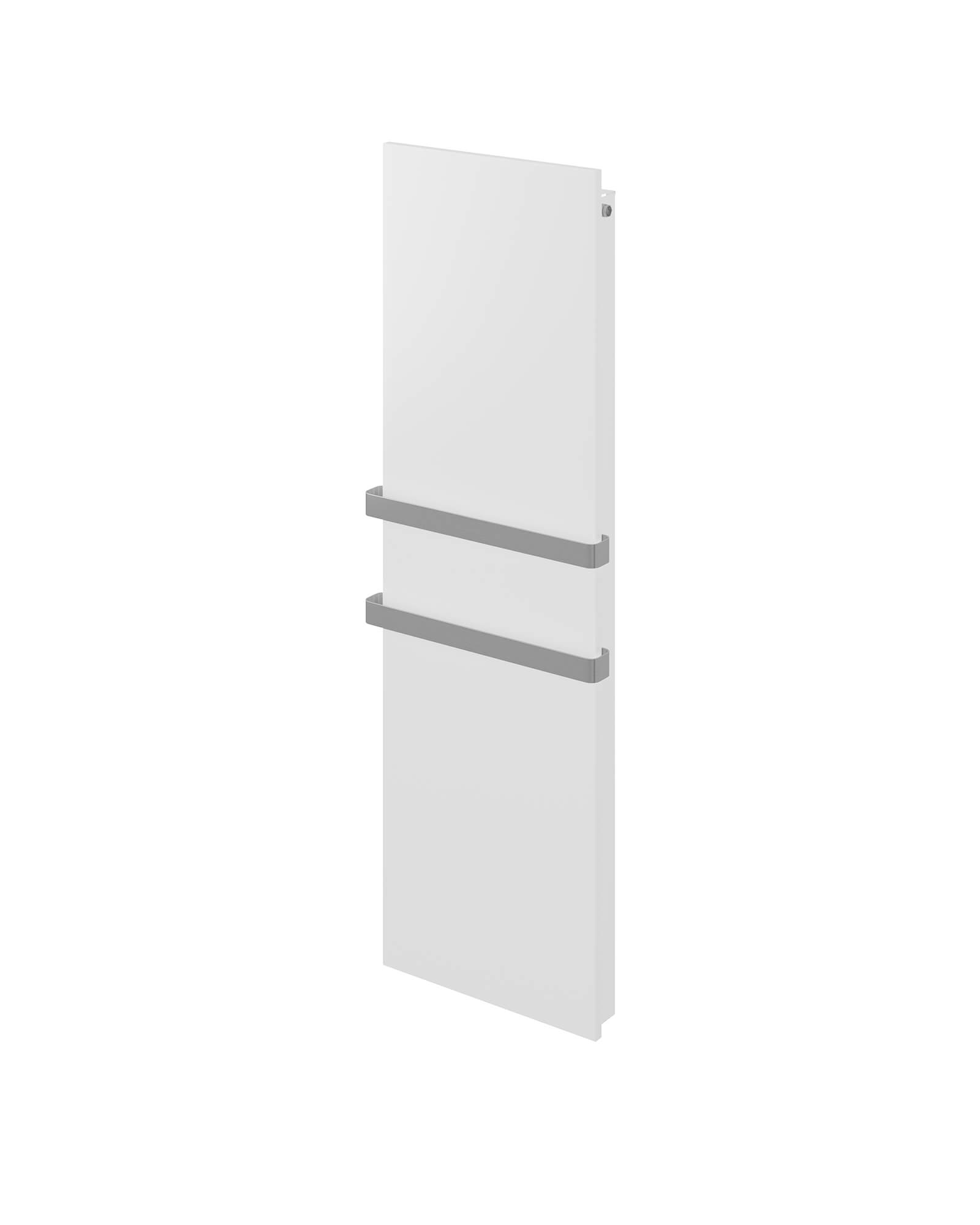

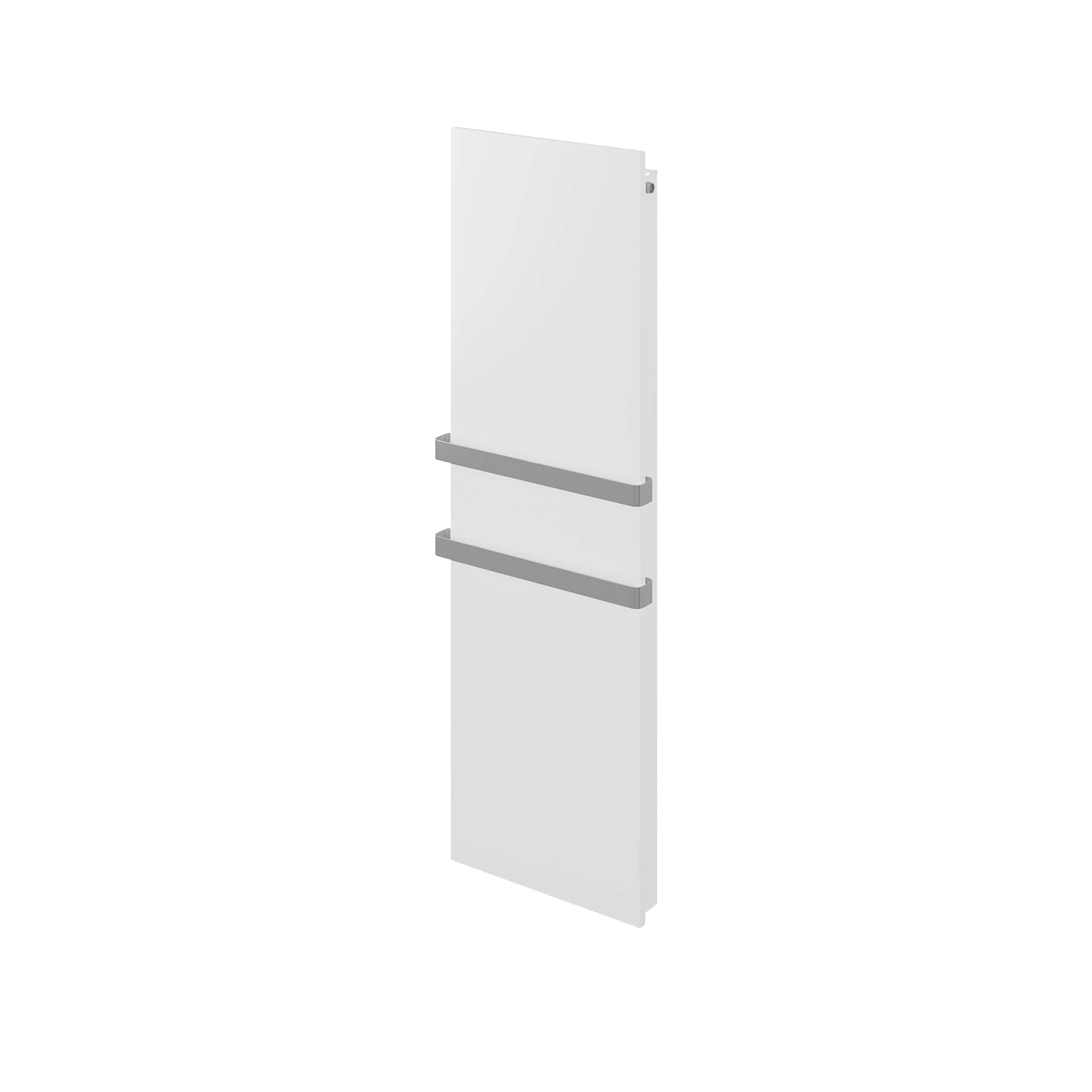

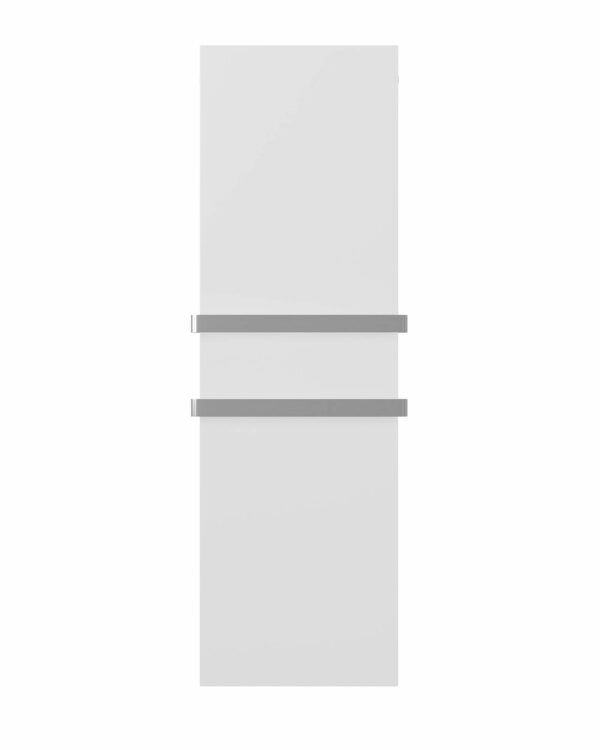

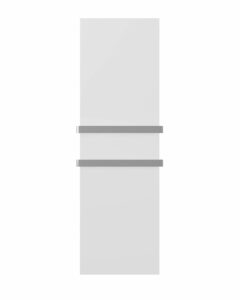

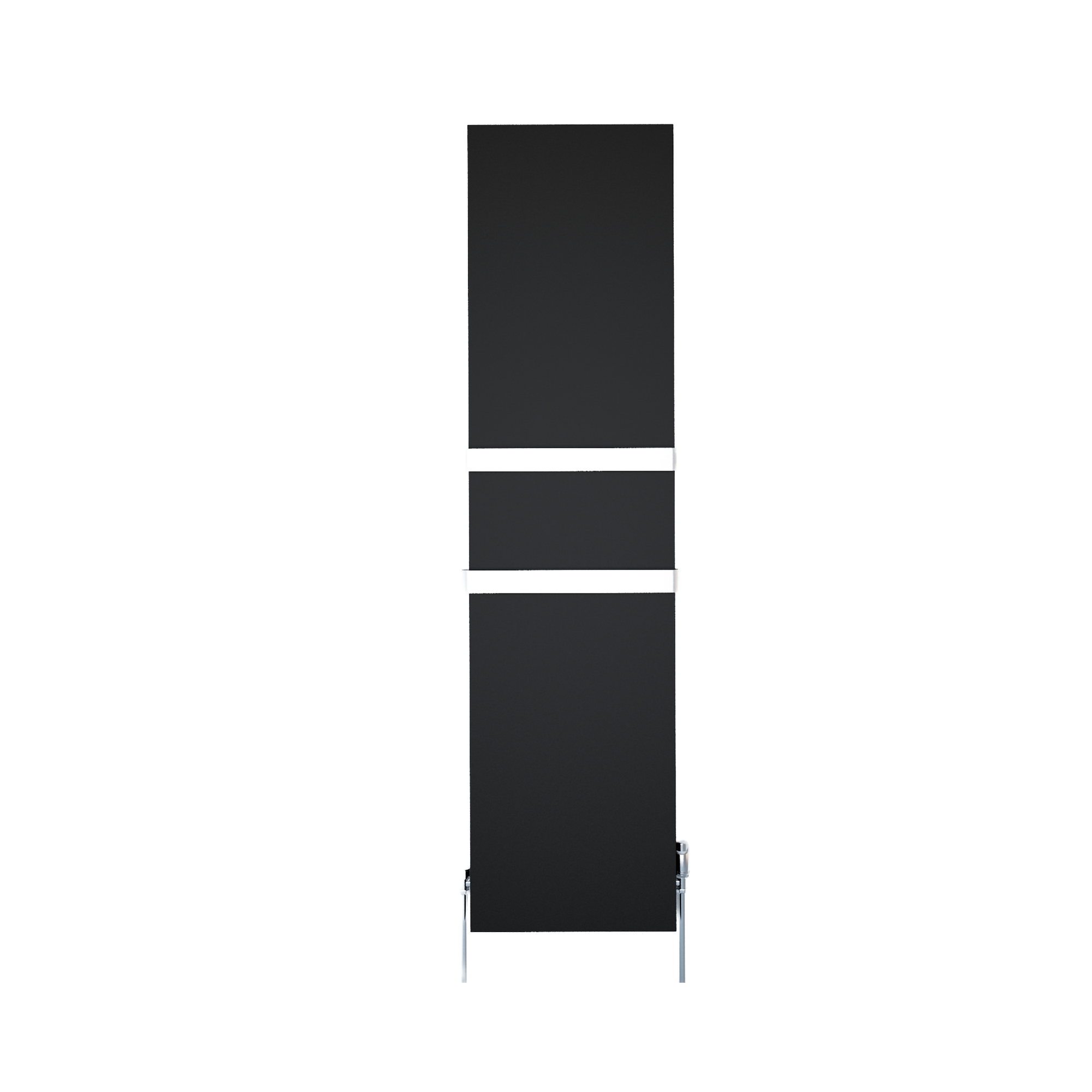

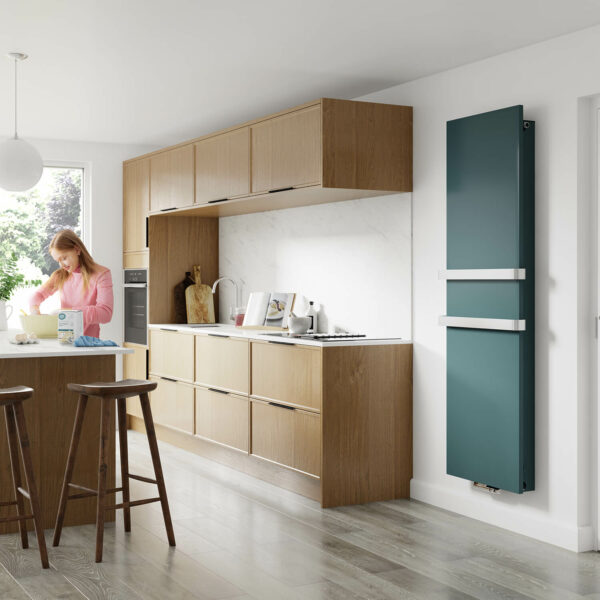

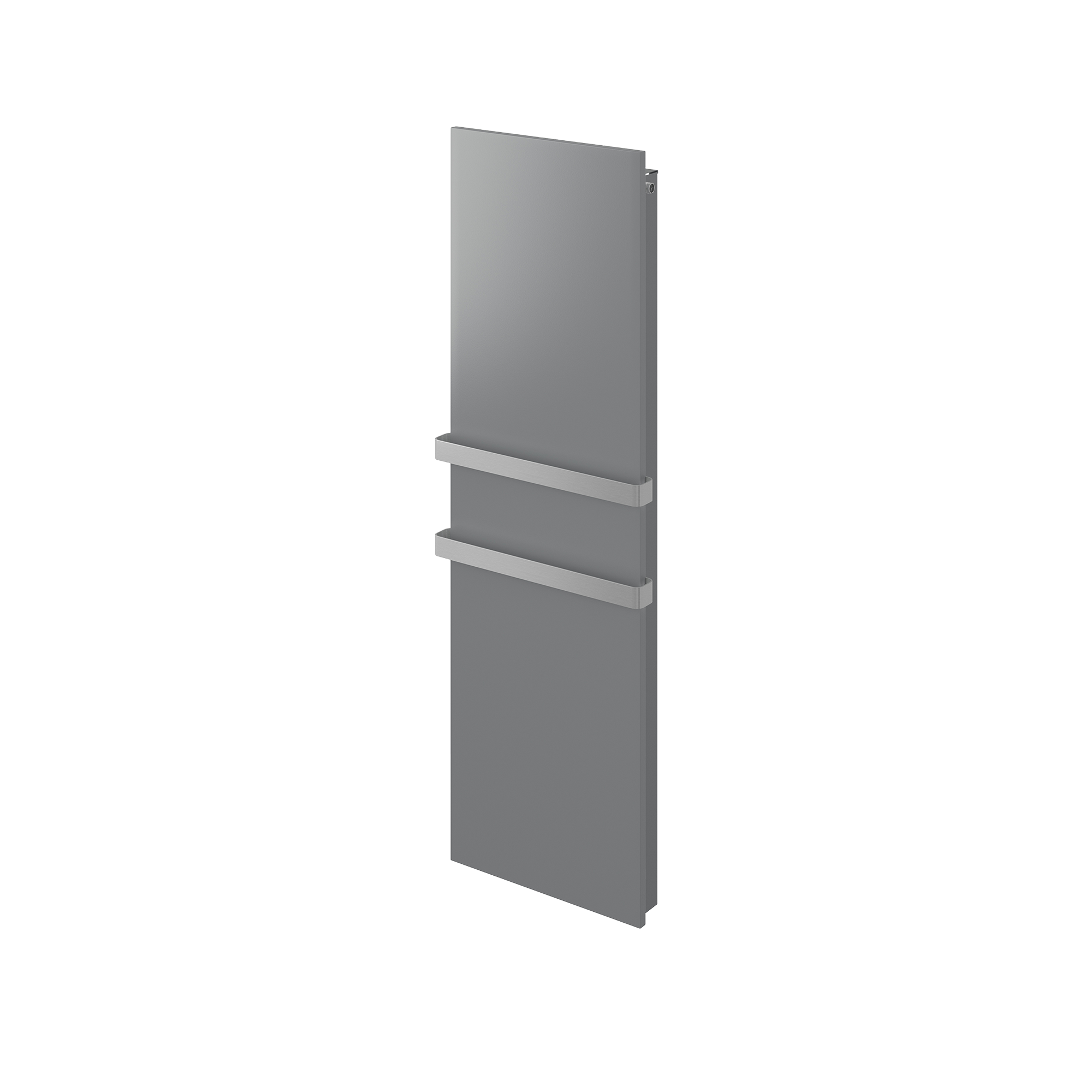

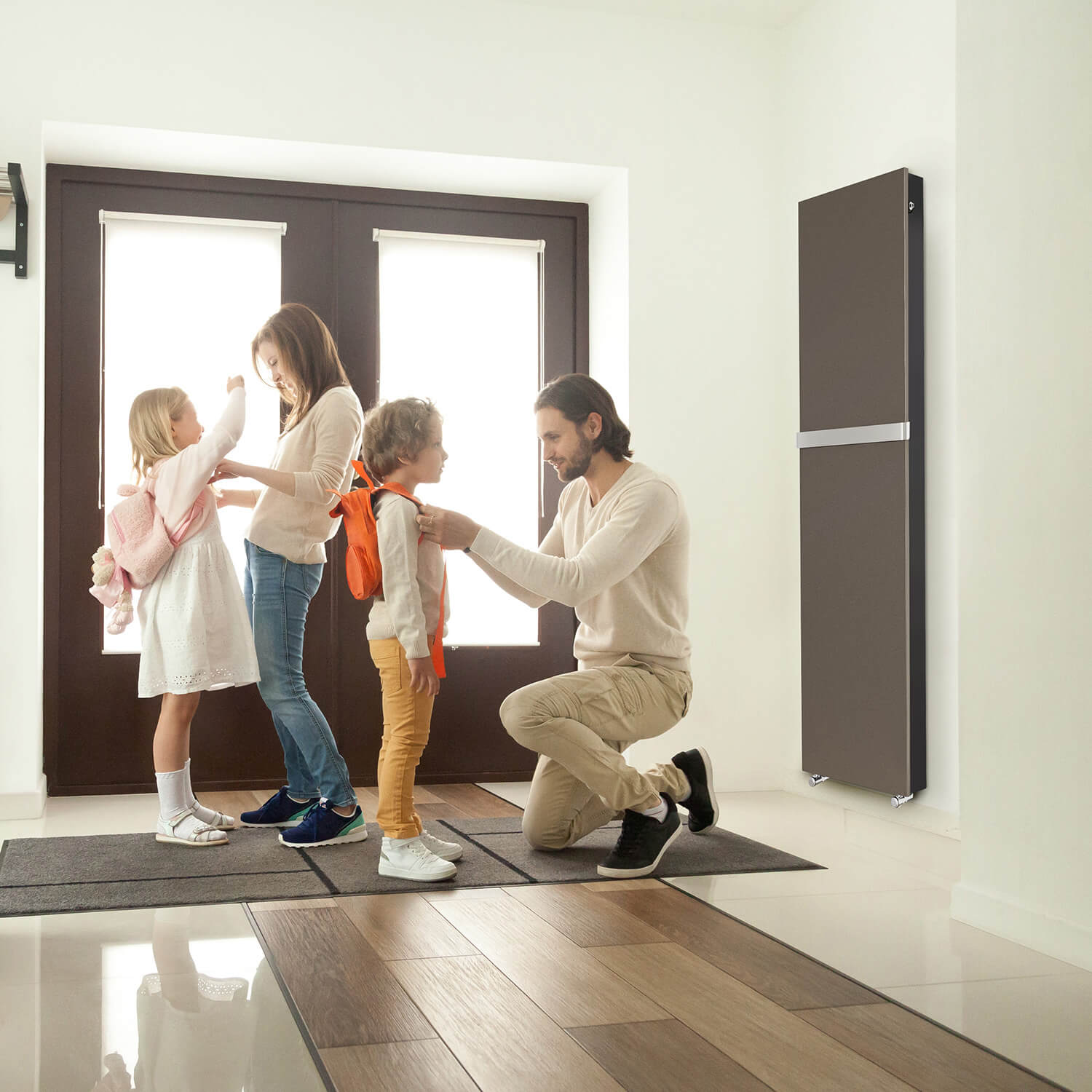

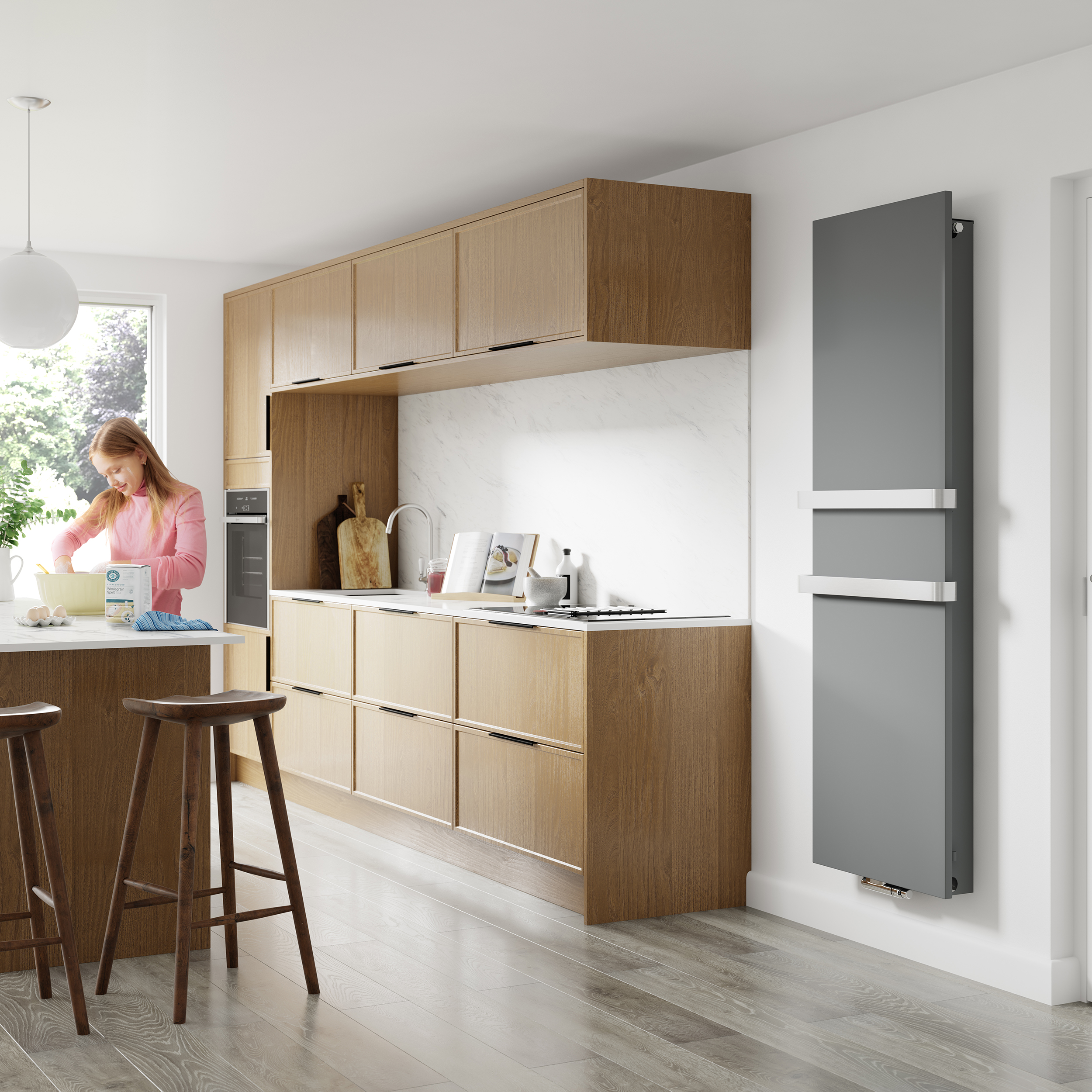

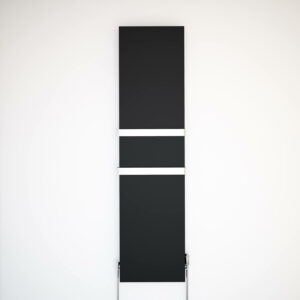

The Stelrad Home Series Vertical Ultra high output radiator is as unique as you are with the option of one, two or three towel rail bars and can be tailored to suit any bathroom or kitchen.

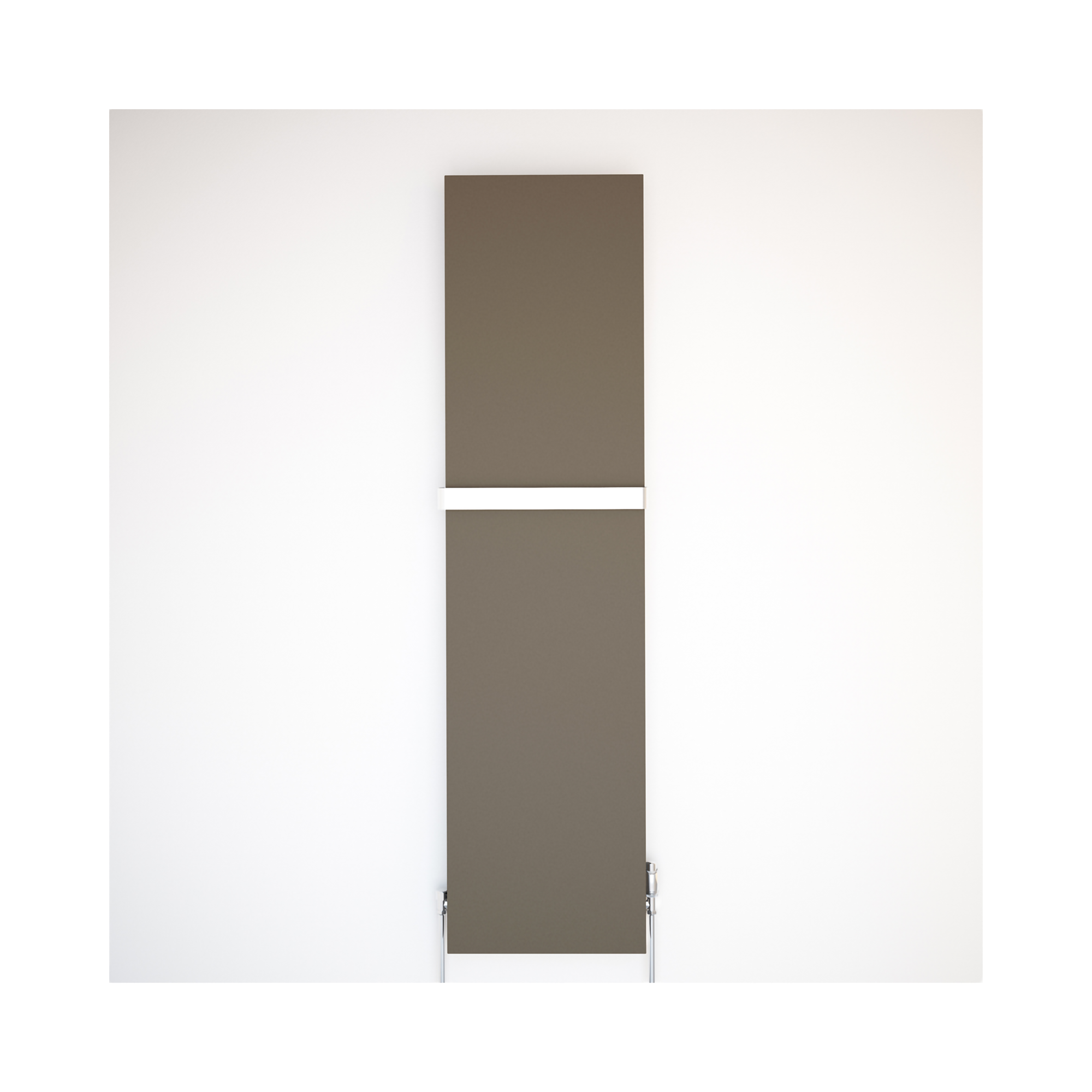

Available in over 30 made to order colour options, it can be tailored to work in any space. When choosing a colour, please note that only the galvanised front panel is coloured, but where the product is 1000mm & 1200mm – the emitter, top grille and side panels are black. Where the product is 1800mm & 2000mm, the emitter, top grille and side panels are white.

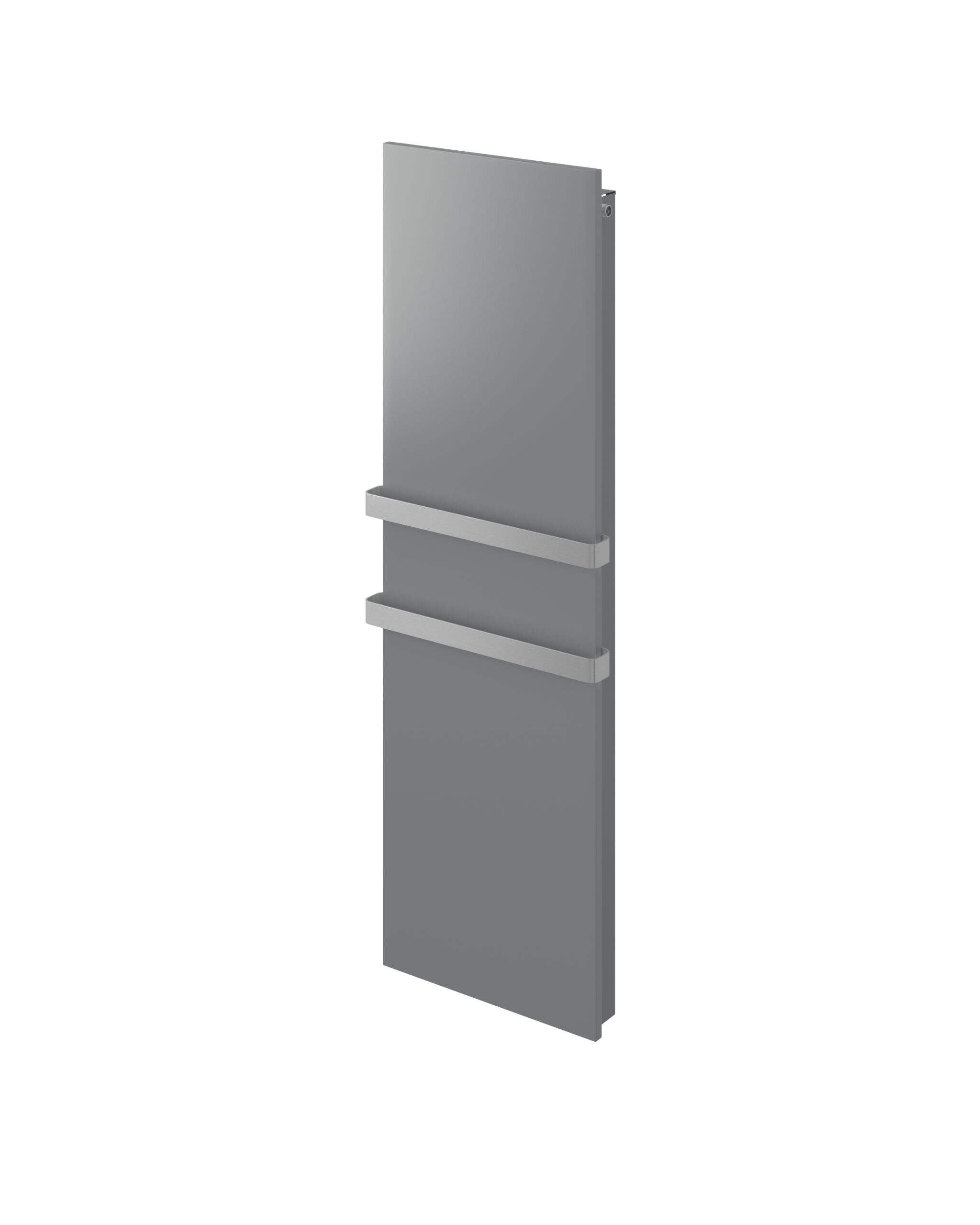

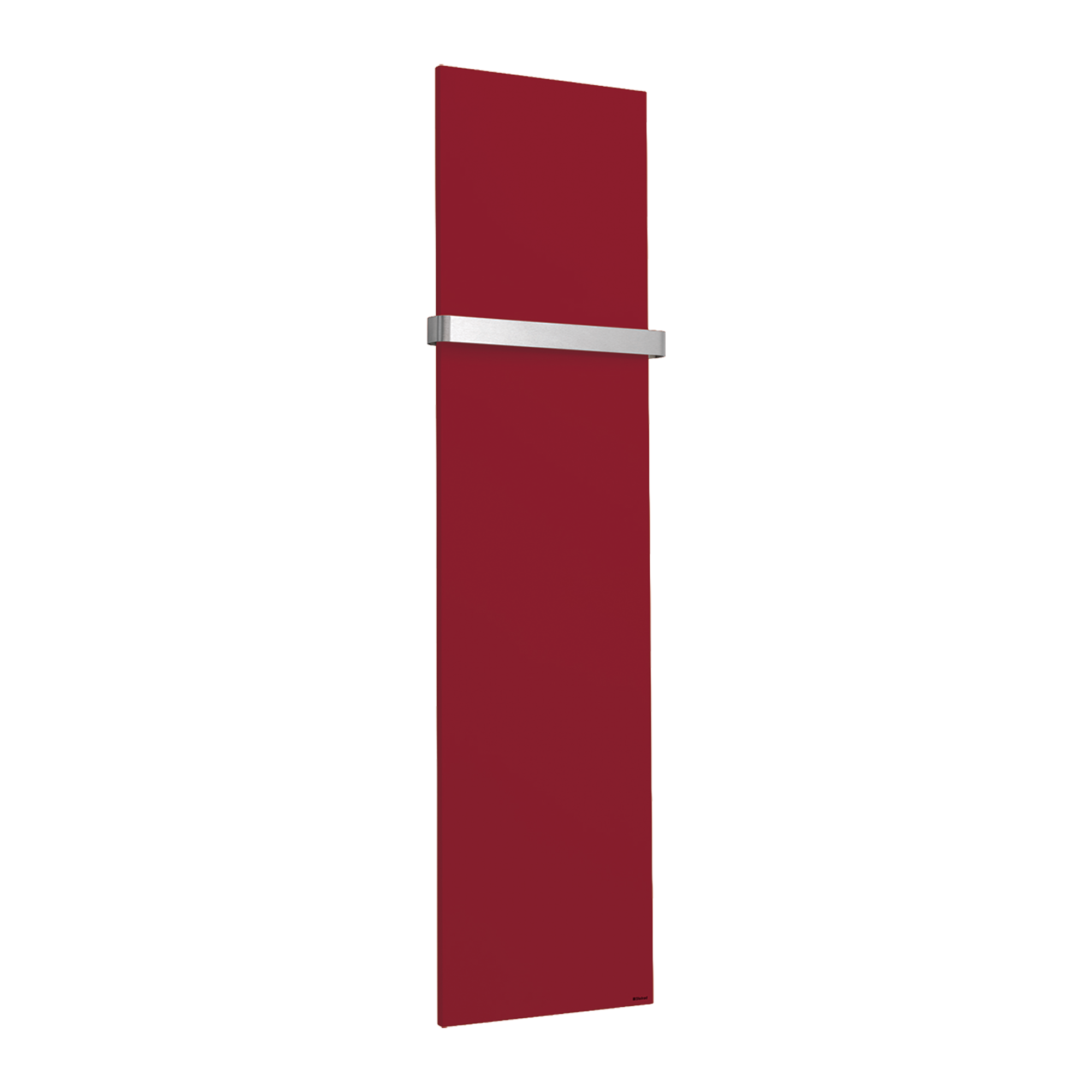

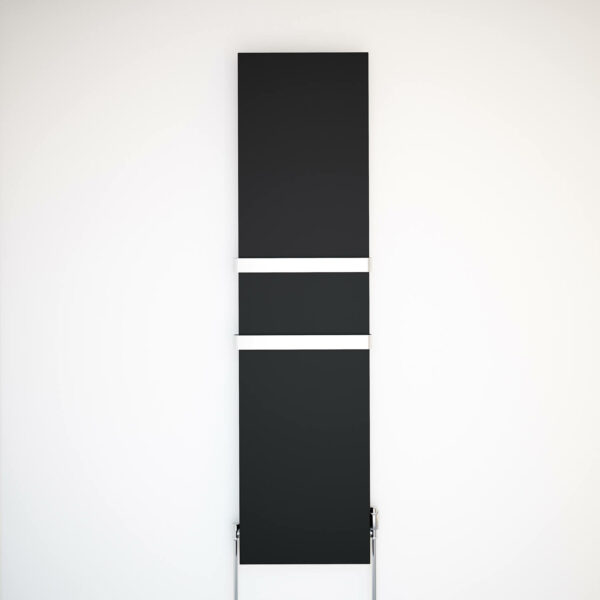

The towel rail bars are an optional extra which can be purchased separately. You can install a maximum of 3 bars depending on the Vertical Ultra size purchased:

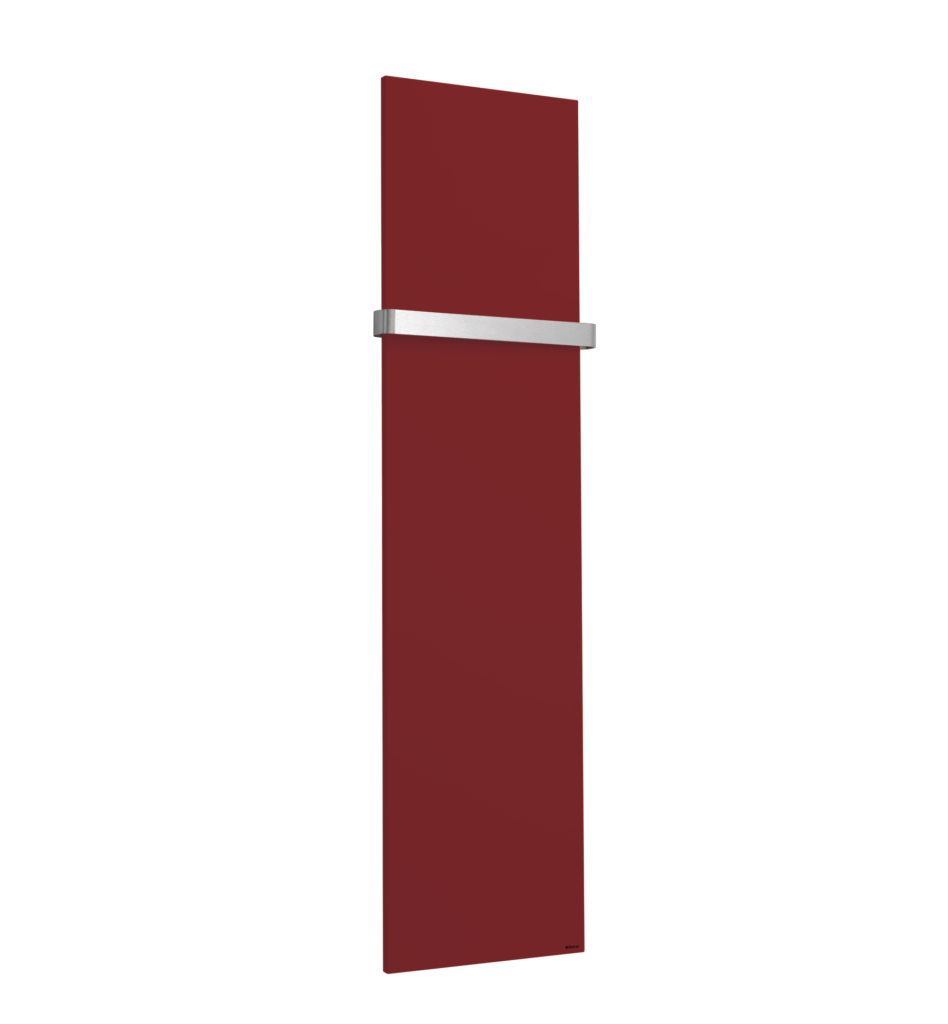

- 1000mm: One bar. The top edge of the towel bar is at 840mm from the bottom edge of the radiator.
- 1200mm: Two bars. The top edge of the first towel bar is at 790mm and the second is at 1070mm from the bottom edge of the radiator.
- 1800mm: Three bars. The top edge of the first towel bar is at 790mm, the second is at 1070mm and the third is at 1350mm from the bottom edge of the radiator.
- 2000mm:Â Three bars. The top edge of the first towel bar is at 790mm, the second is at 1070mm and the third is at 1350mm from the bottom edge of the radiator.
You can follow the simple step by step instructions by using the following link to download the ‘How to bleed a radiator’ advice sheet or click here to watch a short video on how to bleed a Stelrad radiator.
**The colours shown are reproduced as accurately as the digital process will allow**
Online delivery will be fulfilled by a third-party courier who will contact you by either text or email to confirm a date and time for delivery (Standard Delivery within Mainland UK only).
For full terms of delivery, please click here.
Specification
| Range | Vertical Ultra |
| Guarantee | 10 year warranty |
| Size Detail | Heights range from 1,040mm - 2,040mm and lengths range of 470mm - 670mm |
| Detail | Paint and colour finish: Over 30 colour options |
| What Do I Get | You will receive a radiator, fixing brackets, vents, plugs, screws & hardware pack |
| Range of Heights | 1,040mm - 2,040mm |
| Range of Lengths | 470mm - 670mm |
| Range of BTUs | 2,924 - 8,107 |
| Range of Watts | 857 - 2,376 |
| Maximum Pressure | 10 bar |
| Type | K2 |
| Colour | Over 30 colour options |
| Material | Steel |
| Inlet Connection | 1/2" |
| Certification | EN442, CE |
| Installation Type | Hot water central heating |
| Delivery | All delivery charges are inclusive of VAT. Orders under a total of £200 incur a £5 delivery charge. |
Reviews
Accessories
Colour:
The Stelrad TRV Angled is available for the following horizontal products: Classic Compact, Classic Compact XP,...
The Stelrad TRV Straight is available for the following horizontal products: Classic Compact, Classic Compact XP,...
...
Delivery
Delivery Time: Up to 72 hours (if order placed before 3:30pm on a working day).
Delivery Charges: All delivery charges are inclusive of VAT. Orders under a total of £200 incur a £5 delivery charge.
Next working day delivery: This delivery option is an additional £18 (inclusive of VAT) which will need to be selected at checkout (if order placed before 2:00pm on a working day). This option is for Mainland UK only.
Online delivery will be fulfilled by a third-party courier who will contact you by either text or email to confirm a date and time for delivery (Standard Delivery within Mainland UK only). For full terms of delivery, please click here.
Please note:Â The following postcodes have upto a 5 day delivery lead time:
AB, DD1-DD11, FK18-21, G84, HS1-HS9, IM, IV1-IV20, IV30-IV36, KA27-KA28, KW1-KW17, PA20-PA80, PH1-PH650, PO30-PO41, TR21-TR25 & ZE
